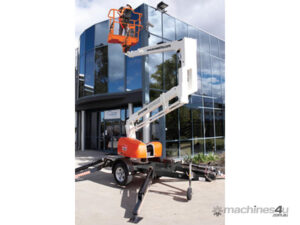

Snorkel MHP13AT Trailer Mounted Boom Lift

Description

• Max. Working Height: 12.9m
• Max. Working Outreach: 6.4m
• Platform Capacity: 215kg
• Weight: 1,460kg

Designed and built for the Australian market, the MHP13AT is a robust and reliable trailer mounted boom lift, which is ideal for tradespeople and facilities maintenance applications.

STANDARD FEATURES

• Heavy duty tow coupling
• Hydraulic stabilisers
• Two man steel platform
• Two person capacity
• Heavy duty jockey wheel
• Hydraulic disc brakes
• Reliable petrol engine
• Outrigger boom safety interlocks
• Platform foot switch
• Spare wheel
• LED taillights
• Lifting lugs
• Automatic self-levelling stabilisers
• Rotating basket mount
• Basket overload

• Specifications
• Max Working Height: 12.9m
• Max Platform Height: 10.9m
• Max Working Outreach: 6.4m
• Platform Size: 1.15m x 0.7m
• Overall Width (Outriggers Extended): 3.6m
• Overall Width (Outriggers Stowed): 1.6m
• Overall Length: 4.9m
• Transport Height: 2.0m
• Platform Capacity (SWL): 215kg
• Max Wind Speed: 12.5m/s
• Levelling: Auto
• Turntable Rotation: 540° Non-Continuous
• Tyres: 185 R14 102/100P
• Brakes: Hydraulic Over-Run Non-Free Reversing
• Insulation Rating: Nil
• Trailer Tongue Weight: 80kg
• Power Source: Honda Petrol
• Weight: 1460kg

With 20+ years of experience, Equipment Sales Australia offers top-quality construction equipment at competitive prices. We provide expert advice, reliable brands, and a network of service providers to ensure long-term performance. Contact us today for the best solutions!

Technical Specifications

• Condition

  New

• Year

  Not specified

• Make

  Snorkel

• Max Working Height

  12.9m

• Max Platform Height

  10.9m

• Max Working Outreach

  6.4m

• Platform Size

  1.15m x 0.7m

• Overall Width (Outriggers Extended)

  3.6m

• Overall Width (Outriggers Stowed)

  1.6m

• Overall Length

  4.9m

• Transport Height

  2.0m

• Platform Capacity (SWL)

  215kg

• Max Wind Speed

  12.5m/s

• Levelling

  Auto

• Turntable Rotation

  540° Non-Continuous

• Tyres

  185 R14 102/100P

• Brakes

  Hydraulic Over-Run Non-Free Reversing

• Insulation Rating

  Nil

• Trailer Tongue Weight

  80kg

• Power Source

  Honda Petrol

• Weight

  1460kg
