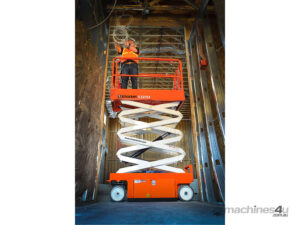

Snorkel S3215E Electric Scissor Lift

Description

• Max. Working Height: 6.6m
• Overall Width: 0.81m
• Platform Capacity: 272kg
• Weight: 1,227kg

Built to handle the demands of the rental industry and the toughest job sites, this new Snorkel electric scissor lift is designed with a focus on low total ownership costs. Reliable, robust and simple lifts packed with innovative features designed to reduce downtime.

STANDARD FEATURES

• Roll-out deck extension with dual locks
• Non-marking tires
• Swing-out service trays
• Saloon-door style entry gates
• Descent alarm
• All motion alarm
• 2 persons indoors
• 1 person outdoors
• Proportional controls, including descent
• Power line to platform
• Loading pendant
• Platform overload system
• Flashing amber light
• Hour meter & on-board diagnostics display
• Integrated battery charger
• Battery condition indicator
• Crane & forklift points
• Dual lanyard attachment points
• Scissor stack roller slide plates (set of 2)
• 2 year parts & labor, 5 year structural warranty

Specifications:

• Max Working Height: 6.6m
• Max Platform Height: 4.6m
• Platform Size (stowed): 0.72m x 1.62m
• Platform Size (extended): 0.72m x 2.53m
• Extension Deck Length: 0.91m
• Overall Length (with step): 1.78m
• Overall Length (without step): 1.73m
• Overall Width: 0.81m
• Min Height (guardrails folded): 1.59m
• Stowed Height: 2.02m
• Ground Clearance (stowed): 66mm
• Ground Clearance (elevated): 19mm
• Platform Capacity (SWL): 273kg
• Max Drive Height: 4.6m
• Max Operating Wind Speed: 12.5m/s
• Max Drive Speed (stowed): 3.2km/h
• Max Drive Speed (elevated): 0.6km/h
• Raise/Lower Time: 20/36 sec
• Gradeability: 25%
• Inside Turning Radius: 0.1m
• Outside Turning Radius: 1.63m
• Tyres: 12 x 4 non-marking rubber
• Controls: Proportional
• Drive System: 2 wheel drive
• Power Source: 24V DC battery electric
• Battery Charger: 90 – 240V, 25amp
• Weight: 1,227kg

With 20+ years of experience, Equipment Sales Australia offers top-quality construction equipment at competitive prices. We provide expert advice, reliable brands, and a network of service providers to ensure long-term performance. Contact us today for the best solutions!

Technical Specifications

• Condition

  New

• Year

  Not specified

• Make

  Snorkel

• Max Working Height

  6.6m

• Max Platform Height

  4.6m

• Platform Size (stowed)

  0.72m x 1.62m

• Platform Size (extended)

  0.72m x 2.53m

• Extension Deck Length

  0.91m

• Overall Length (with step)

  1.78m

• Overall Length (without step)

  1.73m

• Overall Width

  0.81m

• Min Height (guardrails folded)

  1.59m

• Stowed Height

  2.02m

• Ground Clearance (stowed)

  66mm

• Ground Clearance (elevated)

  19mm

• Platform Capacity (SWL)

  273kg

• Max Drive Height

  4.6m

• Max Operating Wind Speed

  12.5m/s

• Max Drive Speed (stowed)

  3.2km/h

• Max Drive Speed (elevated)

  0.6km/h

• Raise/Lower Time

  20/36 sec

• Gradeability

  25%

• Inside Turning Radius

  0.1m

• Outside Turning Radius

  1.63m

• Tyres

  12 x 4 non-marking rubber

• Controls

  Proportional

• Drive System

  2 wheel drive

• Power Source

  24V DC battery electric

• Battery Charger

  90 – 240V, 25amp

• Weight

  1,227kg
