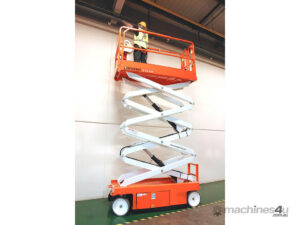

Snorkel S3226E Electric Scissor Lift

Description

• Max. Working Height: 9.9m
• Overall Width: 0.81m
• Platform Capacity: 250kg
• Weight: 2,268kg

The Snorkel S3226E is a brand new 9.9m electric scissor lift from Snorkel which is designed for the rental industry. Built to withstand the toughest conditions, the S3226E also boasts a number of innovative features to improve the operator experience and reduce maintenance time.

STANDARD FEATURES

• Roll-out deck extension with dual locks
• Non-marking tires
• Swing-out service trays
• Saloon-door style entry gates
• Descent alarm
• All motion alarm
• Proportional controls, including descent
• 2 persons indoor
• Loading pendant
• Power line to platform
• Platform overload system
• Hour meter & on-board diagnostics display
• Flashing amber light
• Integrated battery charger
• Battery condition indicator
• Crane & forklift points
• Dual lanyard attachment points
• Scissor stack roller slide plates (set of 2)
• 2 year parts & labor, 5 year structural warranty

Specifications:

• Max Working Height: 9.9m
• Max Platform Height: 7.9m
• Platform Size (stowed): 0.72m x 2.14m
• Platform Size (extended): 0.72m x 2.6m
• Extension Deck Length: 0.91m
• Overall Length (with step): 2.3m
• Overall Length (without step): 2.26m
• Overall Width: 0.81m
• Stowed Height: 2.3m
• Min Height (guardrails folded): 1.85m
• Ground Clearance (stowed): 66mm
• Ground Clearance (elevated): 19mm
• Platform Capacity (SWL): 250kg
• Max Drive Height: 7.9m
• Max Wind Speed: 0m/s
• Max Drive Speed (stowed): 3.2km/h
• Max Drive Speed (elevated): 0.6km/h
• Raise/Lower Time: 50/56 sec
• Gradeability: 25%
• Inside Turning Radius: 0.76m
• Outside Turning Radius: 2.36m
• Tyres: 15 x 4 non-marking rubber
• Controls: Proportional
• Drive System: 2 wheel drive
• Power Source: 24V DC battery electric
• Battery Charger: 90 – 240V, 25amp
• Weight: 2,268kg

With 20+ years of experience, Equipment Sales Australia offers top-quality construction equipment at competitive prices. We provide expert advice, reliable brands, and a network of service providers to ensure long-term performance. Contact us today for the best solutions!

Technical Specifications

• Condition

  New

• Year

  Not specified

• Make

  Snorkel

• Max Working Height

  9.9m

• Max Platform Height

  7.9m

• Platform Size (stowed)

  0.72m x 2.14m

• Platform Size (extended)

  0.72m x 2.6m

• Extension Deck Length

  0.91m

• Overall Length (with step)

  2.3m

• Overall Length (without step)

  2.26m

• Overall Width

  0.81m

• Stowed Height

  2.3m

• Min Height (guardrails folded)

  1.85m

• Ground Clearance (stowed)

  66mm

• Ground Clearance (elevated)

  19mm

• Platform Capacity (SWL)

  250kg

• Max Drive Height

  7.9m

• Max Wind Speed

  0m/s

• Max Drive Speed (stowed)

  3.2km/h

• Max Drive Speed (elevated)

  0.6km/h

• Raise/Lower Time

  50/56 sec

• Gradeability

  25%

• Inside Turning Radius

  0.76m

• Outside Turning Radius

  2.36m

• Tyres

  15 x 4 non-marking rubber

• Controls

  Proportional

• Drive System

  2 wheel drive

• Power Source

  24V DC battery electric

• Battery Charger

  90 – 240V, 25amp

• Weight

  2,268kg
