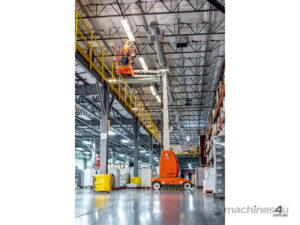

Snorkel MB26J Mast Boom Lift

Description

• Max. Working Height: 9.8m
• Max. Working Outreach:3.0m
• Platform Capacity: 215 kg
• Weight: 2,660kg

The Snorkel MB26J is an electric mast boom lift which can lift 215kg to a working height of 9.8m. Fitted with a jib boom, the MB26J is highly maneuverable and is ideal for applications requiring ‘up and over’ capabilities, particularly in confined spaces.

• Specifications
• Max Working Height: 9.8m
• Max Platform Height: 7.8m
• Max Working Outreach: 3.0m
• Platform Size: 0.78m x 0.73m
• Overall Width: 1.0m
• Overall Length: 2.8m
• Stowed Height: 1.98m
• Ground Clearance: 100mm
• Platform Capacity (SWL): 215kg
• Max Drive Height: 7.75m
• Max Wind Speed: 12.5m/s
• Max Drive Speed (Stowed): 3.2km/h
• Max Drive Speed (Elevated): 0.48km/h
• Jib Length: 1.4m
• Jib Arc: 130°
• Mast Rotation (Non-Continuous): 360°
• Raise/Lower Time: 56/27sec
• Gradeability: 25%
• Inside Turning Radius: 0.3m
• Outside Turning Radius: 2.1m
• Tyres: 323mm Non-marking rubber
• Controls: Proportional controls
• Drive System: Electro/hydraulic
• Power Source: 4 x 6V x 375 AH batteries
• Weight: 2,660kg

With 20+ years of experience, Equipment Sales Australia offers top-quality construction equipment at competitive prices. We provide expert advice, reliable brands, and a network of service providers to ensure long-term performance. Contact us today for the best solutions!

Technical Specifications

• Condition

  New

• Year

  Not specified

• Make

  Snorkel

• Max Working Height

  9.8m

• Max Platform Height

  7.8m

• Max Working Outreach

  3.0m

• Platform Size

  0.78m x 0.73m

• Overall Width

  1.0m

• Overall Length

  2.8m

• Stowed Height

  1.98m

• Ground Clearance

  100mm

• Platform Capacity (SWL)

  215kg

• Max Drive Height

  7.75m

• Max Wind Speed

  12.5m/s

• Max Drive Speed (Stowed)

  3.2km/h

• Max Drive Speed (Elevated)

  0.48km/h

• Jib Length

  1.4m

• Jib Arc

  130°

• Mast Rotation (Non-Continuous)

  360°

• Raise/Lower Time

  56/27sec

• Gradeability

  25%

• Inside Turning Radius

  0.3m

• Outside Turning Radius

  2.1m

• Tyres

  323mm Non-marking rubber

• Controls

  Proportional controls

• Drive System

  Electro/hydraulic

• Power Source

  4 x 6V x 375 AH batteries

• Weight

  2,660kg
