Snorkel UL40 Mast Lift

Description

• Max. Working Height: 14.1m
• Tilt-Back Height: 2.0m
• Platform Capacity: 136kg
• Weight (DC): 500kg

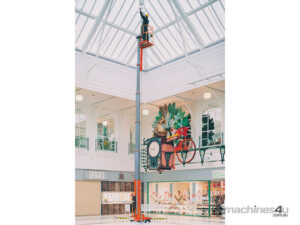

The Snorkel UL40 is the largest personnel lift in the range. This robust push-around mast lift, safely lifts one person plus tools to a working height of 14.1m. The lift can be easily pushed into position, and can pass through standard doorways thanks to its innovative tilt-back system. The patented ‘Girder Lock’ telescopic mast design provides a very stable platform, even at full elevation. The UL40 is ideal for interior maintenance, particularly in sports hall, auditoriums, atriums and shopping malls.

STANDARD FEATURES

• Patented girder lock telescopic mast system
• Integrated tilt-back system
• Ground level entry
• EZ Loader system for transport
• Outrigger interlock indicators
• Integrated battery charger (DC only)
• Non-marking wheels & casters
• 2 year parts & labor, 5 year structural warranty

Specifications:

• Max Working Height: 14.1m
• Max Platform Height: 12.1m
• Platform Length: 0.56m
• Platform Width: 0.66m
• Outrigger Footprint: 2.95m x 2.85m
• Overall Width: 0.74m
• Overall Length: 1.32m
• Stowed Height: 2.9m
• Tilt Back Height: 2.0m
• Tilt Back Length: 2.99m
• Platform Capacity (SWL): 136kg
• Max Wind Speed: 0m/s
• Raise/Lower Time: 60/40 seconds
• Wheels: 250mm x 64mm rear, 150mm casters front
• Controls: Push button
• Wall Access: 736mm
• Power Source (AC): 120/220V AC 50Hz
• Power Source (DC): 1 x 12V 105AH battery
• Gross Weight (AC): 470kg
• Gross Weight (DC): 500kg

With 20+ years of experience, Equipment Sales Australia offers top-quality construction equipment at competitive prices. We provide expert advice, reliable brands, and a network of service providers to ensure long-term performance. Contact us today for the best solutions!

Technical Specifications

• Condition

  New

• Year

  Not specified

• Make

  Snorkel

• Max Working Height

  14.1m

• Max Platform Height

  12.1m

• Platform Length

  0.56m

• Platform Width

  0.66m

• Outrigger Footprint

  2.95m x 2.85m

• Overall Width

  0.74m

• Overall Length

  1.32m

• Stowed Height

  2.9m

• Tilt Back Height

  2.0m

• Tilt Back Length

  2.99m

• Platform Capacity (SWL)

  136kg

• Max Wind Speed

  0m/s

• Raise/Lower Time

  60/40 seconds

• Wheels

  250mm x 64mm rear, 150mm casters front

• Controls

  Push button

• Wall Access

  736mm

• Power Source (AC)

  120/220V AC 50Hz

• Power Source (DC)

  1 x 12V 105AH battery

• Gross Weight (AC)

  470kg

• Gross Weight (DC)

  500kg
