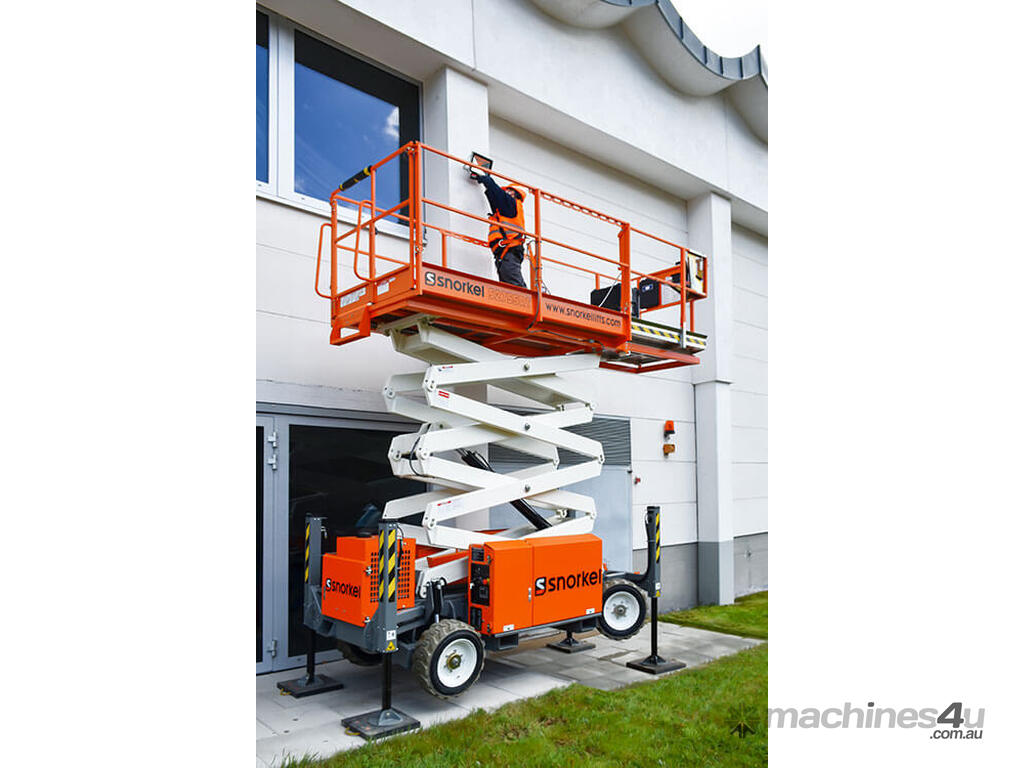

Snorkel S2755RT Rough Terrains Scissor Lift

Description

• Max. Working Height: 10.1m
• Overall Width: 1.45m
• Platform Capacity: 300kg
• Weight: 2,750kg

Engineered to tackle rough terrains, the Snorkel S2755RT delivers versatility on the toughest jobsites. This diesel-powered all-terrain scissor lift is also the most compact in its class in Australia.

Built tough for outdoor work, the S2755RT features excellent ground clearance and rugged four-wheel drive. Hydraulic outriggers automatically level on uneven surfaces for safe and secure working at height. For soft surfaces or indoor work, non-marking tyres leave no trace or marks.

This compact scissor lift is designed small to operate in confined spaces between buildings. At only 1.45m, its narrow width is an ideal solution for working in tight areas. The agile S2755RT fits in places where a standard width machine would have difficulties.

The S2755RT features a 1.2m roll-out extension deck and generous platform capacity up to 300kg. An optional 240V outlet makes it easy to work off the deck with power tools. Its integrated power line to platform adds function and flexibility.

To reduce environmental impact, the scissor lift includes an option for hydraulic oil. High performance hydraulic oil benefits the equipment and the environment. The sustainable oil reduces the machine’s energy consumption and is biodegradeable.

A bi-energy option adds versatility to the all-terrain scissor lift. Switch between electric for quiet indoor use or diesel engine for rough terrain work. This option meets jobsite regulations on noise and emissions.

S2755RT ALL-TERRAIN SCISSOR LIFT FEATURES

• 4 wheel drive
• 4 hydraulic stabilizers with automatic leveling
• Roll out deck extension
• Non-marking foam filled tires
• Proportional controls
• Power line to platform
• Drive motion alarm
• Descent alarm
• Oscillating axle
• Manual lowering valve
• Flashing amber light
• Dual lanyard attachment points
• Hour meter
• 2 years parts & labor, 5 year structural warranty

Specifications:

• Max Working Height: 10.1m
• Max Platform Height: 8.1m
• Platform Size (Stowed): 1.4m x 2.73m
• Platform Size (Extended): 1.4m x 3.93m
• Extension Deck Length: 1.2m
• Overall Width: 1.45m
• Overall Length: 3.3m
• Stowed Height: 2.5m
• Min Height (Guardrails Folded): 2.13m
• Ground Clearance: 260mm
• Platform Capacity (SWL): 300kg
• Max Drive Height: 7.8m
• Max Wind Speed: 12.5m/s
• Drive Speed Below 2.4m: 5.2 km/h
• Drive Speed Above 2.4m: 0.5 km/h
• Raise/Lower Time: 26/30 seconds
• Gradeability: 35%
• Max Outrigger Leveling (Front to Rear): 6°
• Max Outrigger Leveling (Side to Side): 10°
• Inside Turning Radius: 2.5m
• Outside Turning Radius: 4.75m
• Exit/Entry Angle: 20°
• Tyres: 0.58m x 0.22m – 12 non-marking
• Controls: Proportional joystick
• Drive System: 4 wheel drive
• Power Source: Kubota diesel engine
• Weight: 2,750kg

With 20+ years of experience, Equipment Sales Australia offers top-quality construction equipment at competitive prices. We provide expert advice, reliable brands, and a network of service providers to ensure long-term performance. Contact us today for the best solutions!

Technical Specifications

• Condition

  New

• Year

  Not specified

• Make

  Snorkel

• Max Working Height

  10.1m

• Max Platform Height

  8.1m

• Platform Size (Stowed)

  1.4m x 2.73m

• Platform Size (Extended)

  1.4m x 3.93m

• Extension Deck Length

  1.2m

• Overall Width

  1.45m

• Overall Length

  3.3m

• Stowed Height

  2.5m

• Min Height (Guardrails Folded)

  2.13m

• Ground Clearance

  260mm

• Platform Capacity (SWL)

  300kg

• Max Drive Height

  7.8m

• Max Wind Speed

  12.5m/s

• Drive Speed Below 2.4m

  5.2 km/h

• Drive Speed Above 2.4m

  0.5 km/h

• Raise/Lower Time

  26/30 seconds

• Gradeability

  35%

• Max Outrigger Leveling (Front to Rear)

  6°

• Max Outrigger Leveling (Side to Side)

  10°

• Inside Turning Radius

  2.5m

• Outside Turning Radius

  4.75m

• Exit/Entry Angle

  20°

• Tyres

  0.58m x 0.22m – 12 non-marking

• Controls

  Proportional joystick

• Drive System

  4 wheel drive

• Power Source

  Kubota diesel engine

• Weight

  2,750kg
