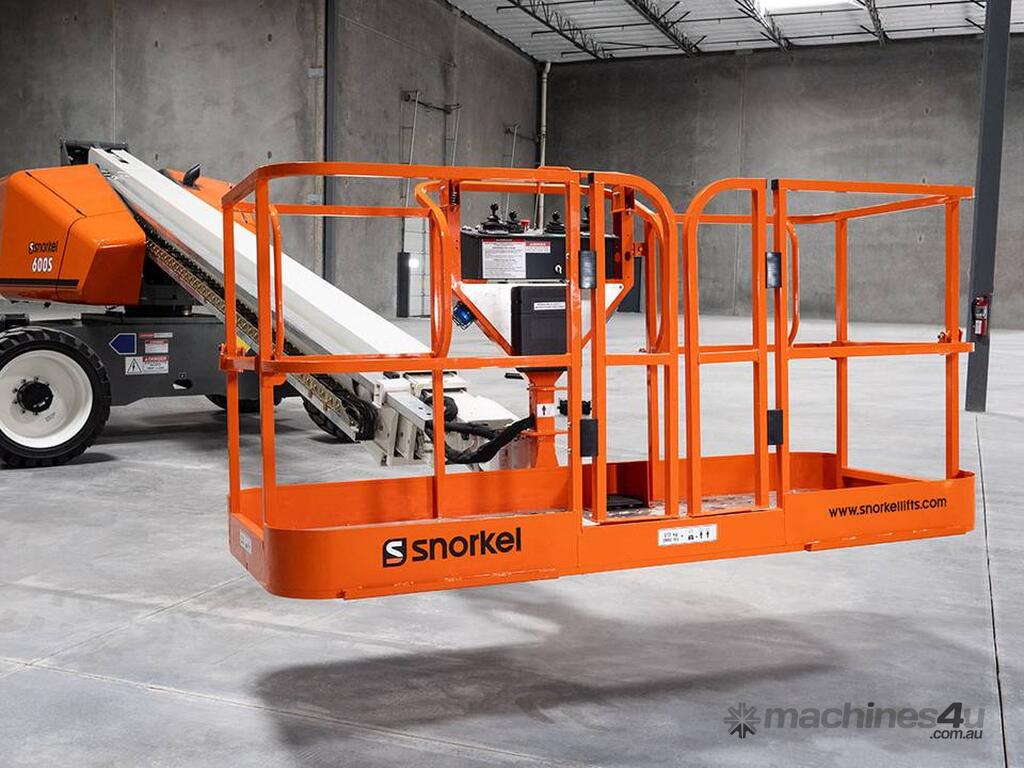

In Stock ! Snorkel A62JRT Articulated Boom Lift

Description

• Max. Working Height: 20.8m
• Max. Working Outreach: 11.1m
• Platform Capacity: 227kg
• Weight: 11,300kg

Launched in 2012, the Snorkel A62JRT is a high performance articulated boom lift, featuring a class-leading working envelope. With compact dimensions, zero tailswing and an ultra-tight turning radius, this lift is ideal for working in confined spaces, and also has powerful hydrostatic 4 wheel drive for tackling rough terrain jobsites. Ideal for construction and industrial applications.

STANDARD FEATURES

• Snorkel Guard™ secondary guarding system
• Powerful hydrostatic 4 wheel drive
• Oscillating axle
• Zero tailswing
• Ultra-tight turning radius

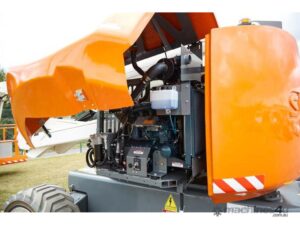

• Swing-out engine tray
• Hour meter & on-board diagnostic display
• Motion alarm
• Horn
• Power line to platform
• Flashing amber light
• Tri-entry platform
• DC emergency operation
• 2 year parts & labour, 5 year structural warranty
• CE approved

• Specifications
• Max Working Height: 20.8m
• Max Platform Height: 18.8m
• Max Working Outreach: 11.1m
• Clearance Height at Max. Outreach: 9.0m
• Platform Size: 2.44 x 0.91m
• Overall Width: 2.4m
• Transport Length: 8.5m
• Overall Length: 8.6m
• Stowed Height: 2.6m
• Ground Clearance: 350mm
• Platform Capacity (SWL): 227kg
• Max Drive Height: 18.8m
• Max Wind Speed: 12.5m/s
• Max Drive Speed (Stowed): 6.1km/h
• Max Drive Speed (Elevated): 1.2km/h
• Jib Length: 1.8m
• Jib Arc: 136°
• Platform Rotation: 180°
• Turret Rotation: 360° Continuous
• Tailswing: 0m
• Gradeability: 45%
• Inside Turning Radius: 1.4m
• Outside Turning Radius: 4.6m
• Tyres: 355/55 D625 Foam Filled Lug

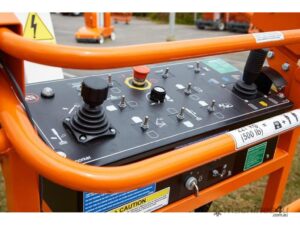

• Controls: Multi-function, Proportional Drive, Raise & Slew
• Drive System: 4WD Hydrostatic with Oscillating Axle
• Power Source: Kubota V2403M 48kW/65hp – EU Stage V*
• Weight: 10,659kg

With 20+ years of experience, Equipment Sales Australia offers top-quality construction equipment at competitive prices. We provide expert advice, reliable brands, and a network of service providers to ensure long-term performance. Contact us today for the best solutions!

Technical Specifications

• Condition

  New

• Year

  Not specified

• Make

  Snorkel

• Max Working Height

  20.8m

• Max Platform Height

  18.8m

• Max Working Outreach

  11.1m

• Clearance Height at Max. Outreach

  9.0m

• Platform Size

  2.44 x 0.91m

• Overall Width

  2.4m

• Transport Length

  8.5m

• Overall Length

  8.6m

• Stowed Height

  2.6m

• Ground Clearance

  350mm

• Platform Capacity (SWL)

  227kg

• Max Drive Height

  18.8m

• Max Wind Speed

  12.5m/s

• Max Drive Speed (Stowed)

  6.1km/h

• Max Drive Speed (Elevated)

  1.2km/h

• Jib Length

  1.8m

• Jib Arc

  136°

• Platform Rotation

  180°

• Turret Rotation

  360° Continuous

• Tailswing

  0m

• Gradeability

  45%

• Inside Turning Radius

  1.4m

• Outside Turning Radius

  4.6m

• Tyres

  355/55 D625 Foam Filled Lug

• Controls

  Multi-function, Proportional Drive, Raise & Slew

• Drive System

  4WD Hydrostatic with Oscillating Axle

• Power Source

  Kubota V2403M 48kW/65hp – EU Stage V*

• Weight

  10,659kg
