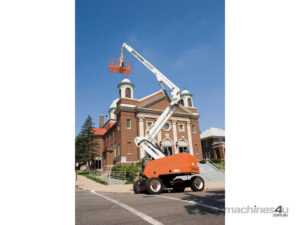

Snorkel AB85J Diesel Articulated Boom Lift

Description

• Max. Working Height: 27.7m
• Max. Working Outreach: 18.8m
• Platform Capacity: 227kg
• Weight: 17,500kg

The Snorkel AB85J is the ultimate diesel articulated boom lift. Capable of lifting 227kg to a working height of 27.7m, the AB85J delivers excellent aerial maneuverability with ‘up and over’ capabilities and a jib boom with 140° side-to-side rotation. In addition, the AB85J has impressive rough terrain performance, boasting both 4 wheel drive and 4 wheel steer, including crab steer.

STANDARD FEATURES

• Snorkel Guard™ secondary guarding system
• Hydraulic platform rotation
• Four wheel drive, steer and crab steer
• Foam filled lug tires
• Proportional drive, lift & swing, extend & rotate
• Drive motion alarm
• Flashing amber light
• Horn
• Dual lanyard attachment points
• Power line to platform
• 3.5° tilt alarm
• 2 year parts & labor, 5 year structural warranty

Specifications:

• Max Working Height: 27.7m
• Max Platform Height: 25.7m
• Max Working Outreach: 18.8m
• Clearance Height at Max Outreach: 8.5m
• Platform Size: 2.44m x 0.91m
• Overall Width: 2.6m
• Overall Length: 12.5m
• Stowed Height: 3.0m
• Ground Clearance: 330mm
• Platform Capacity (SWL): 227kg
• Max Drive Height: 25.7m
• Max Wind Speed: 12.5m/s
• Max Drive Speed (Stowed): 4.8km/h
• Max Drive Speed (Elevated): 1.0km/h
• Jib Length: 2.0m
• Jib Arc: 135° (+70°/-65°)
• Jib Rotation: 140° side to side
• Platform Rotation: 150°
• Raise/Lower Time: 240/240 sec
• Tailswing: 0.89m
• Turret Rotation: 360° continuous
• Gradeability: 30%
• Inside Turning Radius: 2.4m
• Outside Turning Radius: 4.7m
• Tyres: 15 x 625 foam-filled lug
• Controls: Proportional joystick
• Drive System: 4 wheel drive
• Power Source: Kubota V2403 48kW/65hp diesel – Tier 4 Final
• Weight: 17,500kg

With 20+ years of experience, Equipment Sales Australia offers top-quality construction equipment at competitive prices. We provide expert advice, reliable brands, and a network of service providers to ensure long-term performance. Contact us today for the best solutions!

Technical Specifications

• Condition

  New

• Year

  Not specified

• Make

  Snorkel

• Max Working Height

  27.7m

• Max Platform Height

  25.7m

• Max Working Outreach

  18.8m

• Clearance Height at Max Outreach

  8.5m

• Platform Size

  2.44m x 0.91m

• Overall Width

  2.6m

• Overall Length

  12.5m

• Stowed Height

  3.0m

• Ground Clearance

  330mm

• Platform Capacity (SWL)

  227kg

• Max Drive Height

  25.7m

• Max Wind Speed

  12.5m/s

• Max Drive Speed (Stowed)

  4.8km/h

• Max Drive Speed (Elevated)

  1.0km/h

• Jib Length

  2.0m

• Jib Arc

  135° (+70°/-65°)

• Jib Rotation

  140° side to side

• Platform Rotation

  150°

• Raise/Lower Time

  240/240 sec

• Tailswing

  0.89m

• Turret Rotation

  360° continuous

• Gradeability

  30%

• Inside Turning Radius

  2.4m

• Outside Turning Radius

  4.7m

• Tyres

  15 x 625 foam-filled lug

• Controls

  Proportional joystick

• Drive System

  4 wheel drive

• Power Source

  Kubota V2403 48kW/65hp diesel – Tier 4 Final

• Weight

  17,500kg
