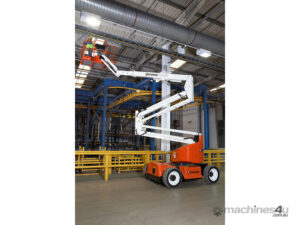

Snorkel A46JE Articulated Boom Lift

Description

• Max. Working Height: 16.3m
• Max. Working Outreach: 7.35m
• Platform Capacity: 227kg
• Weight: 6,664kg

The Snorkel A46JE is a class-leading electric articulated boom lift which can lift 227kg to a working height of 16.0m. This high performance boom delivers a superb working envelope, with the added flexibility of a jib boom. Compact dimensions, tight turning radius and zero tailswing makes this the ideal boom lift for working in tight spaces.

STANDARD FEATURES

• Snorkel Guard™ secondary guarding system
• Multi-function proportional controls
• Zero tailswing
• Tri-entry platform
• Non-marking tires
• Power line to platform
• Hour meter & on-board diagnostics display
• Tilt alarm
• Horn
• Battery charge indicator
• Drive motion alarm
• Flashing amber light
• Platform overload system
• 2 year parts & labor, 5 year structural warranty

Specifications:

• Max Working Height: 16.0m
• Max Platform Height: 14.0m
• Max Working Outreach: 7.35m
• Clearance Height at Max. Outreach: 7.46m
• Platform Size: 1.0m x 1.83m
• Overall Width: 1.7m
• Overall Length: 5.6m
• Stowed Height: 2.0m
• Ground Clearance: 152mm
• Platform Capacity (SWL): 227kg
• Max Drive Height: 14.0m
• Max Wind Speed: 12.5m/s
• Max Drive Speed (stowed): 5.1km/h
• Max Drive Speed (elevated): 0.8km/h
• Jib Length: 1.5m
• Jib Arc: 140°
• Platform Rotation: 160°
• Turret Rotation: 360° non-continuous
• Tailswing: 0m
• Raise/Lower Time: 99/92 seconds
• Gradeability: 30%
• Inside Turning Radius: 0.6m
• Outside Turning Radius: 3.0m
• Tyres: Non-marking IN240/55D 17.5
• Controls: Proportional
• Drive System: 2 wheel drive
• Power Source: 8 x 6V 360Ah batteries
• Weight: 6,664kg

With 20+ years of experience, Equipment Sales Australia offers top-quality construction equipment at competitive prices. We provide expert advice, reliable brands, and a network of service providers to ensure long-term performance. Contact us today for the best solutions!

Technical Specifications

• Condition

  New

• Year

  Not specified

• Make

  Snorkel

• Max Working Height

  16.0m

• Max Platform Height

  14.0m

• Max Working Outreach

  7.35m

• Clearance Height at Max. Outreach

  7.46m

• Platform Size

  1.0m x 1.83m

• Overall Width

  1.7m

• Overall Length

  5.6m

• Stowed Height

  2.0m

• Ground Clearance

  152mm

• Platform Capacity (SWL)

  227kg

• Max Drive Height

  14.0m

• Max Wind Speed

  12.5m/s

• Max Drive Speed (stowed)

  5.1km/h

• Max Drive Speed (elevated)

  0.8km/h

• Jib Length

  1.5m

• Jib Arc

  140°

• Platform Rotation

  160°

• Turret Rotation

  360° non-continuous

• Tailswing

  0m

• Raise/Lower Time

  99/92 seconds

• Gradeability

  30%

• Inside Turning Radius

  0.6m

• Outside Turning Radius

  3.0m

• Tyres

  Non-marking IN240/55D 17.5

• Controls

  Proportional

• Drive System

  2 wheel drive

• Power Source

  8 x 6V 360Ah batteries

• Weight

  6,664kg
