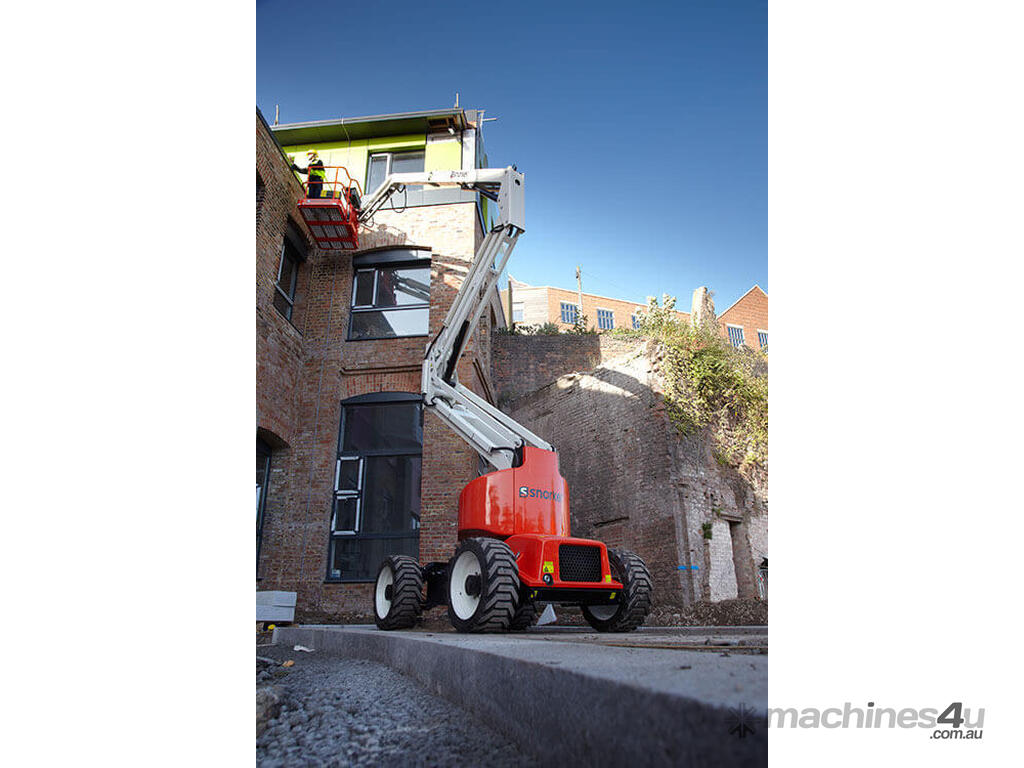

Snorkel A46JRTE Articulating Boom Lift

Description

• Max. Working Height: 16.3m
• Max. Working Outreach: 7.35m
• Platform Capacity: 227kg
• Weight: 7,540 kg

The electric version of the Snorkel A46JRT articulating boom lift, the A46JRTE offers clean performance and quiet operation from lithium-ion batteries. This fully electric model delivers the same rough terrain capability from battery power. Designed to be versatile, the A46JRTE has superb maneuverability and can work indoors.

STANDARD FEATURES

• Three lithium-ion battery systems 17.25kWh
• Snorkel Guard™ secondary guarding system
• Multi-function proportional controls
• Oscillating front axle
• Zero tailswing
• Tri-entry platform
• Non-marking foam filled tires
• Power line to platform
• Hour meter & on-board diagnostics display
• Tilt alarm
• Horn
• Drive motion alarm
• Flashing amber light
• Platform overload system
• 2000 charging cycles/2 year** lithium battery warranty
• 2 year parts & labor, 5 year structural warranty

Specifications:

• Max Working Height: 16.3m
• Max Platform Height: 14.3m
• Max Working Outreach: 7.35m
• Clearance Height at Max. Outreach: 7.67m
• Platform Size: 1.0m x 1.83m
• Overall Width: 2.1m
• Overall Length: 5.7m
• Stowed Height: 2.16m
• Ground Clearance: 330mm
• Platform Capacity (SWL): 227kg
• Max Drive Height: 14.3m
• Max Wind Speed: 12.5m/s
• Max Drive Speed (stowed): 6.8km/h
• Max Drive Speed (elevated): 1.3km/h
• Jib Length: 1.5m
• Jib Arc: 140°
• Platform Rotation: 160°
• Turret Rotation: 360° non-continuous
• Tailswing: 0m
• Raise/Lower Time: 101/98 seconds
• Gradeability: 45%
• Inside Turning Radius: 0.8m
• Outside Turning Radius: 3.1m
• Tyres: High grip foam filled 355/55D625NHS 17.5
• Controls: Proportional
• Drive System: 4 wheel drive
• Power Source: 11.5kWh Li-ion batteries with integrated BMS
• Operating Temperature: (-)25°C to (+)60°C
• Charger: High frequency smart on-board 50A battery charger
• Motor: AC electric motor
• Weight: 7,540 kg

With 20+ years of experience, Equipment Sales Australia offers top-quality construction equipment at competitive prices. We provide expert advice, reliable brands, and a network of service providers to ensure long-term performance. Contact us today for the best solutions!

Technical Specifications

• Condition

  New

• Year

  Not specified

• Make

  Snorkel

• Max Working Height

  16.3m

• Max Platform Height

  14.3m

• Max Working Outreach

  7.35m

• Clearance Height at Max. Outreach

  7.67m

• Platform Size

  1.0m x 1.83m

• Overall Width

  2.1m

• Overall Length

  5.7m

• Stowed Height

  2.16m

• Ground Clearance

  330mm

• Platform Capacity (SWL)

  227kg

• Max Drive Height

  14.3m

• Max Wind Speed

  12.5m/s

• Max Drive Speed (stowed)

  6.8km/h

• Max Drive Speed (elevated)

  1.3km/h

• Jib Length

  1.5m

• Jib Arc

  140°

• Platform Rotation

  160°

• Turret Rotation

  360° non-continuous

• Tailswing

  0m

• Raise/Lower Time

  101/98 seconds

• Gradeability

  45%

• Inside Turning Radius

  0.8m

• Outside Turning Radius

  3.1m

• Tyres

  High grip foam filled 355/55D625NHS 17.5

• Controls

  Proportional

• Drive System

  4 wheel drive

• Power Source

  11.5kWh Li-ion batteries with integrated BMS

• Operating Temperature

  (-)25°C to (+)60°C

• Charger

  High frequency smart on-board 50A battery charger

• Motor

  AC electric motor

• Weight

  7,540 kg
